25L BLOW MOULDING MACHINE

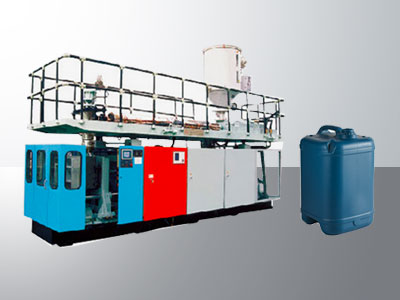

TDB-25APC can help you to make the Max. Volume as 25Liter in the jerrycan. It’s widely used to make 15l~25L jerrycan. This machine is with accumulator type in the die head, 100 point parison controller, bottom blowing device and take-out device. The Max.weight of the plastic jerrycan can be 1.7~1.8KGS. You can have the options in the servo motor in the hydraulic system. We can make the most suitable configuration according to your requirement in you new project.

Technical Features:
1, Electronic control system: Japanese Mitsubishi PLC computer plus man-machine interface (Chinese or English) red paper, touch-screen operation. All process settings, changes, search, monitoring, fault diagnosis and other functions are achieved on the touch screen, no contact with the working principle, components and durable.
2, Hydraulic system: proportional pressure control, equipped with imported brand-name hydraulic components, stable and reliable.
3, Plasticizing system: efficient plasticizing mixing screw, plastic plastic to ensure adequate and uniform.
4, Speed control system: frequency control + alloy steel gear reducer, smooth speed, low noise, durable
5, Opening and closing mode, mobile system: beam arm, three o’clock, the center of the mold clamping mode, to ensure long-term use. Clamping force balance, no deformation, and the use of translation mode body (ball linear guide), high precision, less resistance, faster.
6, Blowing needle holder: the overall angle-type blowing needle holder, stable and not shift, to ensure that products cut smooth

TDB-25APC
Max.Product Volume (L) 25
Station (Single)
Dry cycle (pc/h) 600
Screw Diameter (mm) 82
Screw L/D ratio (L/D) 38(30)
Screw drive power (KW)
Screw heating power (KW) 41.7
No.of heating zone (Screw) (ZONE) 8
Output of HDPE (kg/h) 160
Hydraulic pump driving power (KW) 45
Clamping force (KN) 215
Platen distance (mm) 350-780
Max.Size of Mold (W*H) (mm) 550*650
Capacity of Accumulator head (L) 1.9
Max.Die diameter (Single-head) (mm) 150
Die heating power(Single-head) (KW) 11.3
No.of heating zone (Single-head) (ZONE) 4
Blowing pressure (Mpa) 1.2
Air consumption (M3/MIN) 1
Cooling water pressure (Mpa) 0.3
Water consumption (L/MIN) 150
Size of machine (L*W*H)( m) 6.3*2.2*3.8
Weight of machine (TON) 12
