12L BLOW MOULDING MACHINE

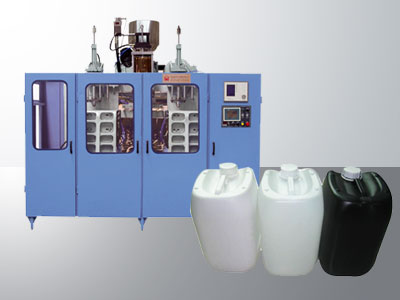

This machine can help you to make the Max. Volume as 12Liter in the jerrycan. It’s widely used to make 500ml~12L bottle. You can have different options in this 12Liter machine like single station, double station, single head, multi heads, view strip, single layer, multi-layers,auto-deflashing function and so on. We can make the most suitable configuration according to your requirement in you new project.

Technical Features:
1, Electronic control system: Japanese Mitsubishi PLC computer plus man-machine interface (Chinese or English) red paper, touch-screen operation. All process settings, changes, search, monitoring, fault diagnosis and other functions are achieved on the touch screen, no contact with the working principle, components and durable.
2, Hydraulic system: proportional pressure control, equipped with imported brand-name hydraulic components, stable and reliable.
3, Plasticizing system: efficient plasticizing mixing screw, plastic plastic to ensure adequate and uniform.
4, Speed control system: frequency control + alloy steel gear reducer, smooth speed, low noise, durable
5, Opening and closing mode, mobile system: beam arm, three o’clock, the center of the mold clamping mode, to ensure long-term use. Clamping force balance, no deformation, and the use of translation mode body (ball linear guide), high precision, less resistance, faster.
6, Blowing needle holder: the overall angle-type blowing needle holder, stable and not shift, to ensure that products cut smooth

Model / HTS-12L HTSII-12L
Max.Product Volume (L) 12 12
Station (Single) (Double)
Dry cycle (pc/h) 700 700*2
Screw Diameter (mm) 70(80) 90
Screw L/D ratio (L/D) 25 25
Screw drive power (KW) 22(30) 37
Screw heating power (KW) 12.7,17.6 15.6
No.of heating zone (Screw) (ZONE) 4 4
Output of HDPE (kg/h) 90(110) 130
Hydraulic pump driving power (KW) 15 15
Clamping force (KN) 158 158
Platen distance (mm) 240-620 240-620
Mold moving stroke (mm) 550 550
Max.Size of Mold (W*H) (mm) 540*550 540*550
Max.Die diameter (Single-head) (mm) 220 220
Die heating power(Single-head) (KW) 9.1 9.1
No.of heating zone (Single-head) (ZONE) 3 3
Central distance of Bi-head (mm) 240,260 240,260
Max.Die diameter (Bi-head) (mm) 145 145
No.of heating zone (Bi-head) (ZONE) 7 7
Heating power (Bi-head) (KW) 15 15
Blowing pressure (Mpa) 0.6 0.6
Air consumption (M3/MIN) 0.8 0.8
Cooling water pressure (Mpa) 0.3 0.3
Water consumption (L/MIN) 60 60
Size of machine (L*W*H)( m) 3.3*2.3*3.1 4.3*2.9*3.1
Weight of machine (TON) 7 11
